Specification
| Main Body | Model | AIR-FOG 3 |
| Weight / Material | 218kg (480.6lb) / SCP1 + Painting | |
| Size (W×D×H) | 1580×780×1170mm (62.2×30.7×46.1in) | |
| Tank Capacity / Material | 400ℓ (105.7gal) / PE | |
| Operation Method | Wireless Remote Control | |
| Fan Support | Unit Bearing Type | |
| Hose Reel | Plastic Reel Ø300 | |
| High Pressure Hose Size | Ø10×50M (1,968.5in) | |
| Color | Dark Yellow | |
| Engine(Motor) | Engine Type | B&S XR Engine |
| Engine Output | 13.5Hp, 420CC | |
| Working Method(Engine) | Automatic Operation / Self Charging | |
| Rating | DC 12V | |
| Fuel Type | Gasoline | |
| Fuel Inlet | Engine all-in-one 6.6ℓ (1.7gal) | |
| Power Sprayer | Power Sprayer | HCS - 80K |
| Size (W×D×H) | 440×310×410mm (17.3×12.2×16.1in) | |
| Weight | 25.5kg (56.2lb) | |
| Air Blower | FAN - TYPE | SIROCCO FAN |
| Discharge Rate | 3,178 Air Flow CFM | |
| Spray Jet : 18 nozzles | Rotation Angle | Up & Down : 74° / Right & Left : 115° |
| Liquid Output / min (Spray Gun) | 1,500ℓ ~ 3,000ℓ/h (396.3gal ~ 792.5gal/h) | |
| Liquid Output / min | 75ℓ~1,400ℓ/h (19.8gal~369.8gal/h) | |
| Spray Distance | 30M (98.3ft) | |
| Particle Size | 10~100µm | |
| Electromagnetic Clutch | Installed | |
| Engine(Motor) | Rate | 12V (35A) |
Use in

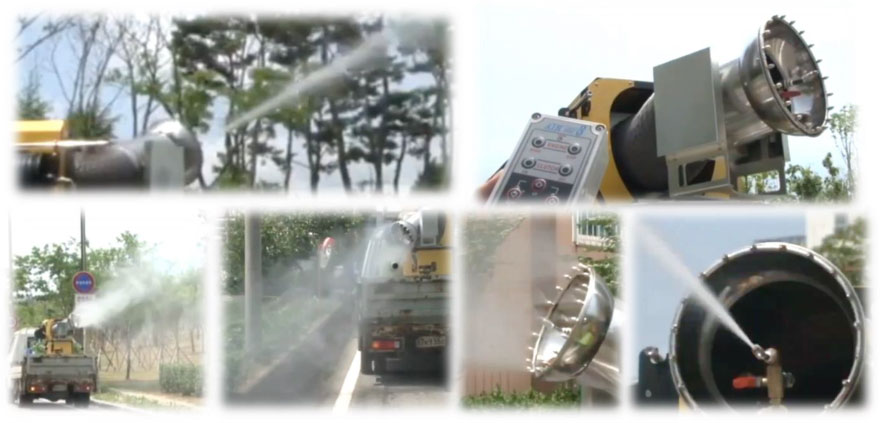

AIR-FOG 3 product is effective for blocking the passages in contaminated area.
(Foot and mouth disease, avian influenza, swine flu, covid 19 etc.)
- AIR-FOG 3 product is especially suitable for outdoor use.
- - Agricultural Field
- - Livestock Area
- - Roadside
- - Forest
- - Garden
- - Buildings
- Various substances can be used for AIR-FOG 3 product.
- - Pesticide
- - Disinfectant
